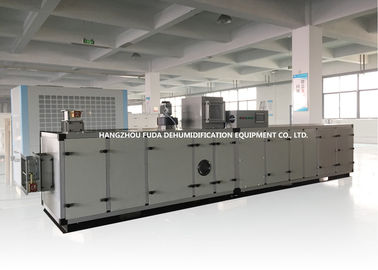

High Efficiency Wheel Adsorption Industrial Desiccant Dehumidifier 1500m³/H

High Efficiency Wheel Adsorption Industrial Desiccant Dehumidifier 1500m³/H

  • High Light

    high capacity dehumidifier

    ,

    Energy Saving Dehumidifier

    ,

    Industrial Desiccant Dehumidifier 1500m3/H

  • DesiccantRotor
    Sweden Proflute
  • InstalledPower
    14.49kw
  • ProductName
    Industrial Desiccant Dehumidifier
  • ProcessAirflow
    1500m³/h
  • DesiccantMaterial
    Silica Gel Wheel
  • SupplyAir
    T=20℃ RH=30%
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCB-1500
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000set/Year

High Efficiency Wheel Adsorption Industrial Desiccant Dehumidifier 1500m³/H


High Efficiency Wheel Adsorption Industrial Desiccant Dehumidifier 1500m³/h


Quick Detail:

Style: refrigeration with wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: silica gel wheel
Process Airflow: 1500m³ /h
Supply Air Parameters: T=20℃ RH=30%
Dehumidifying Efficiency: High
Installed Power: 14.49kw
Power Supply: 380V/3P/50Hz or customized
Certification: ISO9001:2008
Features: fully automatic, energy-saving
Usage: air temperature and humidity control


General Description:

ZCB Series Industrial Desiccant Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.


Operating Principles:

Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Specifications:


Main Parameters



Model

ZCB—1500

Total Process Airflow

1500m3/h

Fresh Airflow

680 m3/h

Recirculated Airflow

820 m3/h

Rotor Regeneration Airflow

500m3/h

Parameters of Output Air

T=22-24℃ RH=30%-40%

Regeneration Power

12kw

The Power of Regeneration Fan

0.25kw

The Power of Blower

2.2kw

The Power of Driving Motor

0.04kw

Installed Power

14.49kw

Cooling Load

28.6kw

Power Supply

3P/380V/50HZ


Competitive Advantage:
  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving



User Friendly Automatic Interface Control System:

High Efficiency Wheel Adsorption Industrial Desiccant Dehumidifier 1500m³/H 0


Production Workflow Chart:

Rotary Wheel Industrial Desiccant Dehumidifier for Pharmaceutical Industrial 23.8kg / h


We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
