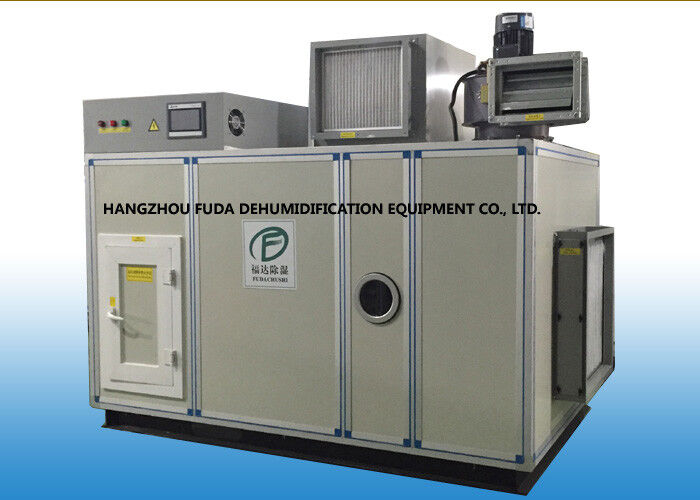

Widely Used Desiccant Wheel Dehumidifier , High Dehumidifying Capacity 80kg/h

Widely Used Desiccant Wheel Dehumidifier , High Dehumidifying Capacity 80kg/h

  • High Light

    air dryer dehumidifier

    ,

    high efficiency dehumidifier

  • Desiccant Rotor
    Sweden Proflute
  • Installed Power
    7.8kw
  • Product Name
    Desiccant Wheel Dehumidifier
  • Rated Air Flow
    8000m³/h
  • Rated Capacity
    63.2kg/h
  • Desiccant Material
    Silica Gel Wheel
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCS-8000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

Widely Used Desiccant Wheel Dehumidifier , High Dehumidifying Capacity 80kg/h


Widely Used Desiccant Wheel Dehumidifier , High Capacity 63.2kg/h



Quick Detail:

Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Air Flow: 8000m³ /h
Rated Dehumidification Capacity: 50kg/h
Dehumidifier Quality: High
Installed Power: 7.8kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: CE

Features: Economical, energy-saving
Usage: Air humidity control


General Description:

ZCS-8000 Desiccant Wheel Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

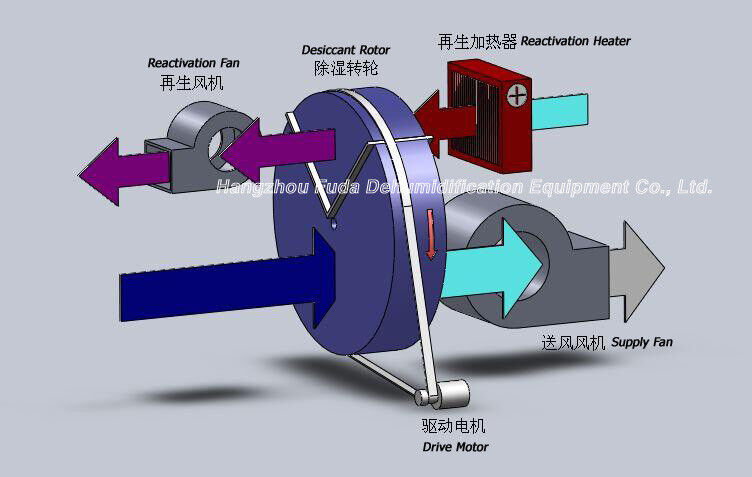

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage




Competitive Advantage:

  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance


Specifications:


Main Parameters



Model

ZCS-8000

Process Airflow

8000 m3/h

Regeneration Airflow

2670 m3/h

Rated Dehumidification Capacity

63.2 kg/h

Regeneration Steam Consumption

110 kg/h

Power of Process Fan

5.5 kw

Power of Regeneration Fan

2.2 kw

Power of Driving Motor

0.1 kw

Installed Power

7.8 kw

Dimension

2850×1400×2180mm

Weight

850 kgs
