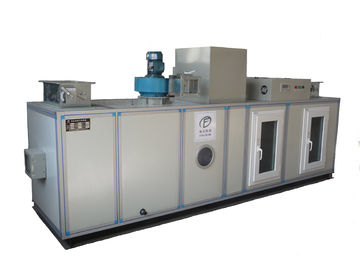

Industrial Silica Gel Rotary Wheel Air Conditioner Dehumidifier 5000m³/h

Industrial Silica Gel Rotary Wheel Air Conditioner Dehumidifier 5000m³/h

  • High Light

    Dry Air Systems Dehumidifier

    ,

    Industrial Air Dehumidifier

  • Desiccant Rotor
    Sweden Proflute
  • Installed Power
    54.7kw
  • Product Name
    Air Conditioner Dehumidifier
  • Rated Air Flow
    5000m³/h
  • Desiccant Material
    Silica Gel Wheel
  • Supply Air
    T=18℃ RH=25%
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCB-5000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

Industrial Silica Gel Rotary Wheel Air Conditioner Dehumidifier 5000m³/h

Industrial Silica Gel Rotary Wheel Air Conditioner Dehumidifier 5000m³/h


Quick Detail:

Style: Refrigeration combined Wheel
Desiccant Rotor: Sweden Proflute
Desiccant Rotor Material: Silica Gel Wheel
Rated Air Flow: 5000m³ /h
Supply Air Parameters: T=18℃ RH=25%
Dehumidifier Quality: High
Installed Power: 54.7kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air temperature and humidity control


General Description:

ZCB Series Air Conditioner Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.


Operating Principles:

Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Specifications:


Main Parameters



Model

ZCB—5000

Total Process Airflow

5000m3/h

Fresh Airflow

500 m3/h

Recirculated Airflow

4500 m3/h

Rotor Regeneration Airflow

1660m3/h

Parameters of Output Air

T≤18℃ RH≤28%

Regeneration Power

48kw

The Power of Regeneration Fan

1.1kw

The Power of Blower

5.5kw

The Power of Driving Motor

0.1kw

Installed Power

54.7kw

Cooling Load

42kw

Power Supply

3P/380V/50HZ




Competitive Advantage:

  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving

We can provide the technical design and suitable equipment for dehumidification according to your requirements.
