Energy Saving Industrial Air Dehumidifier , Desiccant Rotary Wheel 800m³/h

China Energy Saving Industrial Air Dehumidifier , Desiccant Rotary Wheel 800m³/h supplier

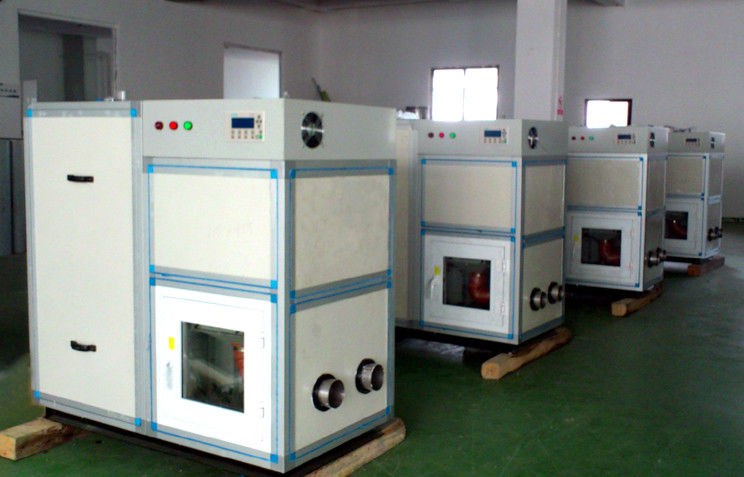

Large Image :  Energy Saving Industrial Air Dehumidifier , Desiccant Rotary Wheel 800m³/h

Product Details:

Place of Origin: Hangzhou, China
Brand Name: FUDA
Certification: ISO9001:2008
Model Number: ZCS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden Case
Delivery Time: 45days
Payment Terms: T/T, LC
Supply Ability: 10000set/Year
Detailed Product Description
Desiccant Rotor: Sweden Proflute Installed Power: 8.24kw
Product Name: Industrial Air Dehumidifier Rated Air Flow: 800m³/h
Rated Capacity: 5.8kg/h Desiccant Material: Silica Gel Wheel



Energy Saving Industrial Air Dehumidifier , Desiccant Rotary Wheel 800m³/h​




Quick Detail:


Style: Wheel adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel Wheel

Rated Air Flow: 800m³ /h

Rated Dehumidification Capacity: 5.8kg/h

Dehumidifier Quality: High

Installed Power: 8.24kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving
Usage: Air humidity control


General Description:

ZCS-800 Small Air Dryer removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage


Competitive Advantage:

  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance


Specifications:


Main Parameters



Model

ZCS-800

Process Airflow

800 m3/h

Regeneration Airflow

270 m3/h

Rated Dehumidification Capacity

5.8 kg/h

Regeneration Power

7.2 kw

Power of Process Fan

0.75 kw

Power of Regeneration Fan

0.25 kw

Power of Driving Motor

0.04 kw

Installed Power

8.24 kw

Dimension

600×600×1500 mm

Weight

180 kgs



Energy Saving Industrial Air Dehumidifier , Desiccant Rotary Wheel 800m³/h
