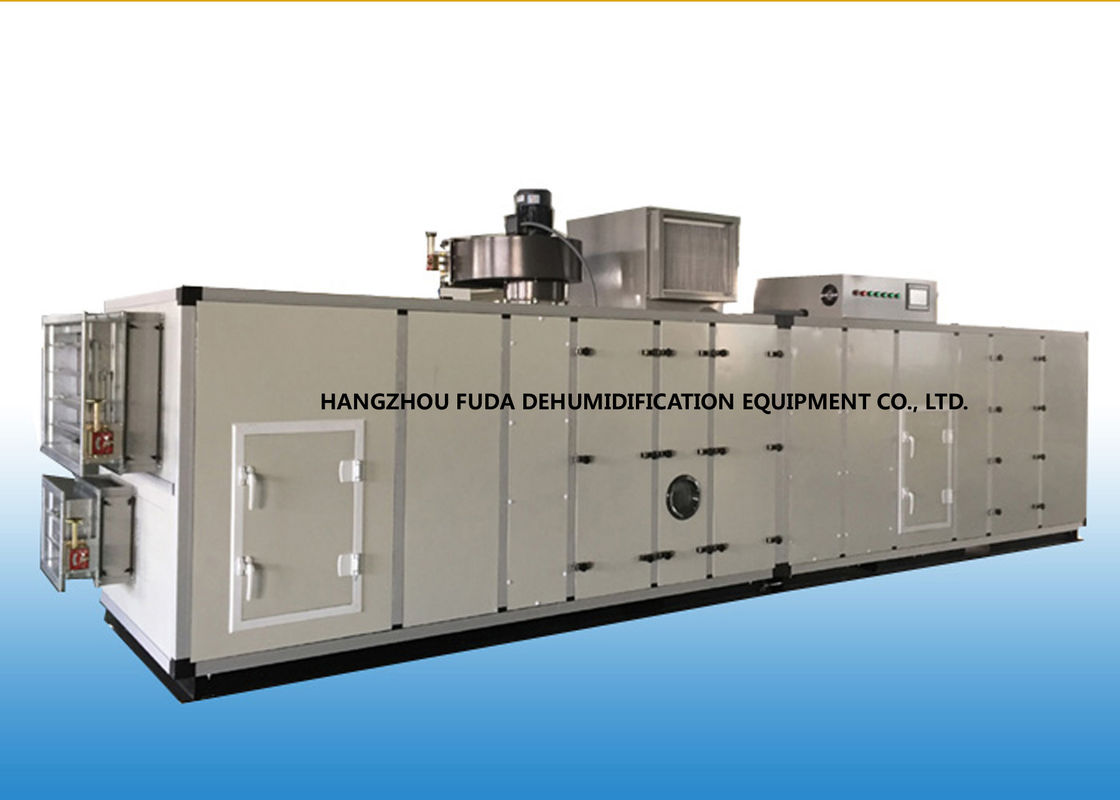

Energy Saving Industrial Desiccant Dehumidifier for Softgel Capsules Drying

Energy Saving Industrial Desiccant Dehumidifier for Softgel Capsules Drying

Quick Detail:

Style: Package Unit with Refrigeration System

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 6000m³ /h

Supply Air Parameters: T=16℃ RH=15%

Dehumidifier Quality: High

Installed Power: 33.6kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Softgel Capsules Drying

General Description:

ZCB Series Desiccant Wheel Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Specifications:

Competitive Advantage:

• Sweden Proflute silicon gel wheel
• A totally self contained unit
• PLC automatic control system, human-machine interface
• Aluminum alloy frame, anti-cold bridge
• Body modularization design, foam injected double wall casing
• Stainless steel drain pan and bottom boards
• Process and reactivation air flow sectors are insulated
• Electric or steam heating or convert type can be available
• All operation parameters can be on-line observed, ensuring operation reliability
• High temperature safety thermostat cutout
• Electrical interlocking of fan motors, heaters and rotor driving

We can also provide suitable equipment for dehumidification according to your requirements.
