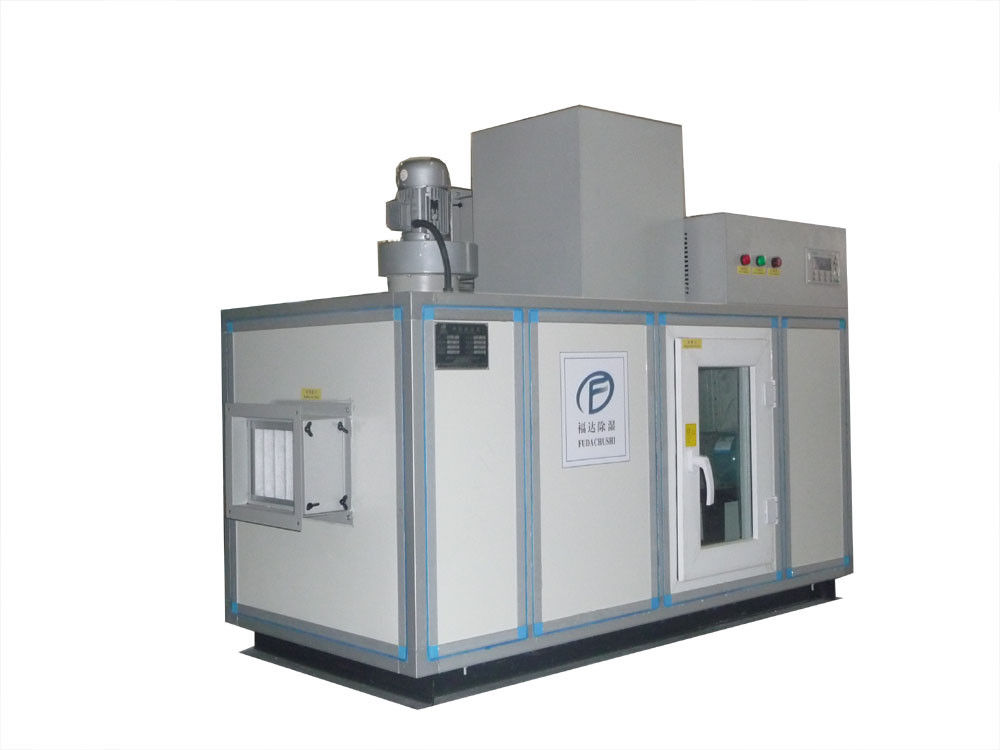

Energy Saving Industrial Dehumidification Systems with Desiccant Wheel 7.2kg/h
Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Rotor Material: Silica Gel Wheel
Rated Air Flow: 1000m³ /h
Rated Dehumidification Capacity: 7.2kg/h
Dehumidifier Quality: High
Installed Power: 11.96kw
Voltage: 380V, 3 phase, 50Hz or customized
Features: Economical, energy-saving
Usage: Air humidity control
ZCS-1000 Industrial Dehumidification Equipment removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.
In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.
This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.
Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.
Rated Dehumidification Capacity
Power of Process Fan
Power of Regeneration Fan
Power of Driving Motor
We can provide technical design and suitable equipment for dehumidification project according to your requirements.
