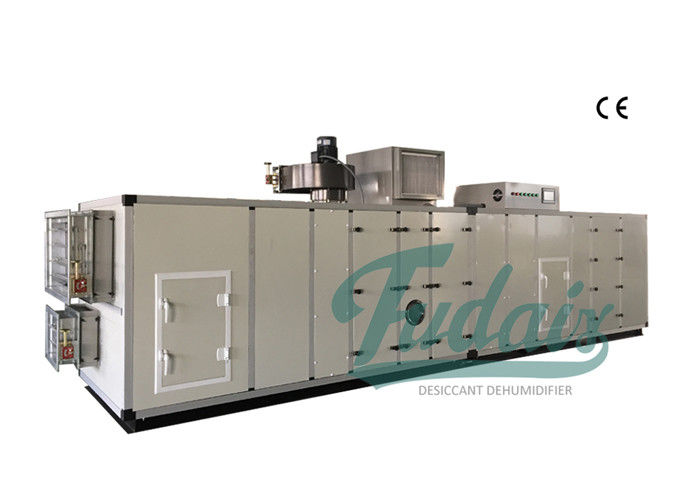

PLC Automatic Industrial Air Dehumidifier With Cooling Coil 6000m3/h

PLC Automatic Industrial Air Dehumidifier With Cooling Coil 6000m3/h

  • High Light

    Industrial Strength Dehumidifier


    Industrial Size Dehumidifier


    PLC Industrial Air Dehumidifier

  • DesiccantRotor
    Sweden Proflute
  • InstalledPower
  • ProductName
    Industrial Air Dehumidifier
  • ProcessAirflow
  • DesiccantMaterial
    Silica Gel Wheel
  • SupplyAirParameters
    T=20℃, RH=20%
  • Place of Origin
    Hangzhou, China
  • Brand Name
  • Certification
    CE, ISO
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    Wooden Case
  • Delivery Time
  • Payment Terms
    T/T, LC
  • Supply Ability

PLC Automatic Industrial Air Dehumidifier With Cooling Coil 6000m3/h


PLC Automatic Industrial Air Dehumidifier With Cooling Coil 6000m3/h



Quick Details:


Style: Refrigeration combined with Wheel adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 6000m³ /h

Supply Air Parameters: T=20℃ RH=20%

Dehumidification Efficiency: High

Installed Power: 49.1kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: CE, ISO9001:2015

Features: Economical, energy-saving

Usage: Air temperature and humidity control



General Description:


ZCB Series Industrial Air Dehumidifier System removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Main Parameters




Total Process Airflow

6000 m3/h

Fresh Airflow

300 m3/h

Recirculated Airflow

5700 m3/h

Rotor Regeneration Airflow

2000 m3/h

Supply Air Parameters

T=20℃ RH=20%

Regeneration Power

42 kw

Regeneration Fan Power

1.5 kw

Blower Power

5.5 kw

Driving Motor Power

0.1 kw

Installed Power

49.1 kw

Cooling Load

232.6 kw

Power Supply




Competitive Advantage:


  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving



We can provide suitable equipment for dehumidification ccording to your requirements.
