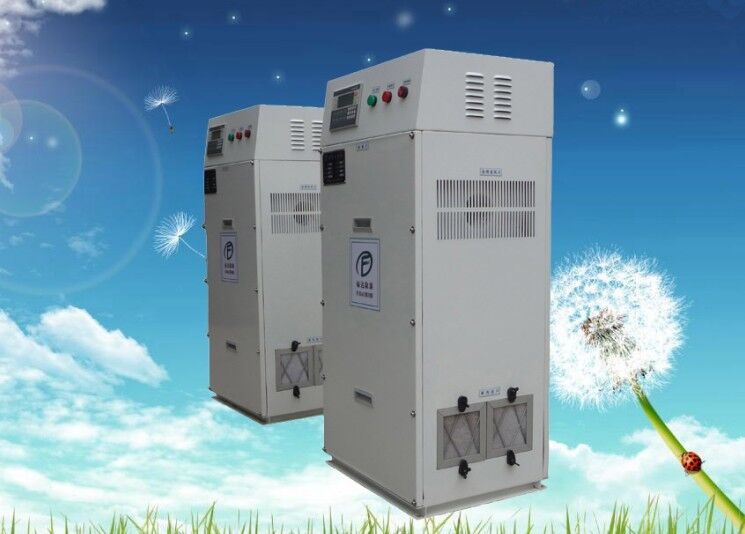

Adsorption Portable Air Dehumidifier , Industrial Drying Equipment 400m3/h

Adsorption Portable Air Dehumidifier , Industrial Drying Equipment 400m3/h

  • High Light

    industrial drying equipment

    ,

    Rotary Desiccant Dehumidifier

  • Desiccant Rotor Material
    Silica Gel Wheel
  • Product Name
    Industrial Desiccant Air Dryer
  • Rated Air Flow
    400m3/h
  • Rated Capacity
    2.8kg/h
  • Desiccant Rotor
    Sweden Proflute
  • Desiccant Material
    Silica Gel Wheel
  • Certification
    ISO9001:2008
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCS-400
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

Adsorption Portable Air Dehumidifier , Industrial Drying Equipment 400m3/h


Adsorption Portable Air Dehumidifier , Industrial Drying Equipment 400m3/h

Quick Details:

Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Process Airflow: 400m³ /h
Rated Dehumidifying Capacity: 2.8kg/h
Dehumidification Efficiency: High
Installed Power: 4.955kw
Voltage: 380V/3 phase/50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air humidity control


General Description:



ZCS-400 Industrial Desiccant Air Dryer removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage


Competitive Advantage:

  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance


Specifications:



Main Parameters



Model

ZCS-400

Process Airflow

400 m3/h

Regeneration Airflow

130 m3/h

Rated Dehumidification Capacity

2.8 kg/h

Regeneration Power

4.5 kw

Power of Process Fan

0.25 kw

Power of Regeneration Fan

0.18 kw

Power of Driving Motor

0.025 kw

Installed Power

4.955 kw

Dimension

520×520×1250 mm

Weight

80 kgs
