ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH<1%
A desiccant wheel dehumidifier is a type of dehumidifier that uses a desiccant material to remove moisture from the air. It is commonly used in industrial and commercial settings where precise humidity control is required.
Specifications:
| Model | ZCH—20000 | |
| Requirements | T<25±2℃,TL<-45℃ | |
| Total Process Airflow(m3/h) | 22500 | |
| Supply Airflow(m3/h) | 20000 | |
| Parameter of Supply Air | T=15℃, TL≤-65℃ | |
| Fresh Airflow(m3/h) | 4000 | |
| Return Airflow(m3/h) | 18500 | |
| Rotor Process Airflow(m3/h) | First Rotor | Second Rotor |
| 4000 | 20000 | |
| Rotor Reactivation Airflow(m3/h) | 1300 | 2500 |
| Reactivation Temperature | 120±10℃ | 135-140℃ |
| Reactivation Electric Heating Power (kw) | 30 | 60 |
| Driving Motor Power(kw) | 0.1 | 0.2 |
| Reactivation Fan Power(kw) | 1.5 | |
| First Fan Power(kw) | 1.5 | |
| Supply Blower Power(kw) | 18.5 | |
| Cooling Load(kw) | 209.7 | |
| Chilled Water Consumption(T≤7℃)( T/h) | 36 | |
| Power Supply | 380V/3P/50Hz | |
| Installed Power(kw) | 111.8 | |
| ESP(External Static Pressure) (Pa) | ≥800 | |
Competitive Advantage:
Application:
Battery Dry Rooms
The development and manufacturing of lithium batteries needs to take place in ultra low humidity dry rooms, regardless of whether it is a small R&D lab environment or a large scale production facility.
Most manufacturers need the dry rooms to be maintained at a dew point of -40°C, and the industry standard could be even lower in the years to come. We have delivered dry rooms capable of -60°C, and have the best technology for the potential demands of the future.
Expertise in every application
Every different kind of lithium battery requires a different manufacturing environment. We provide market-leading technology for the entire range of applications, including:

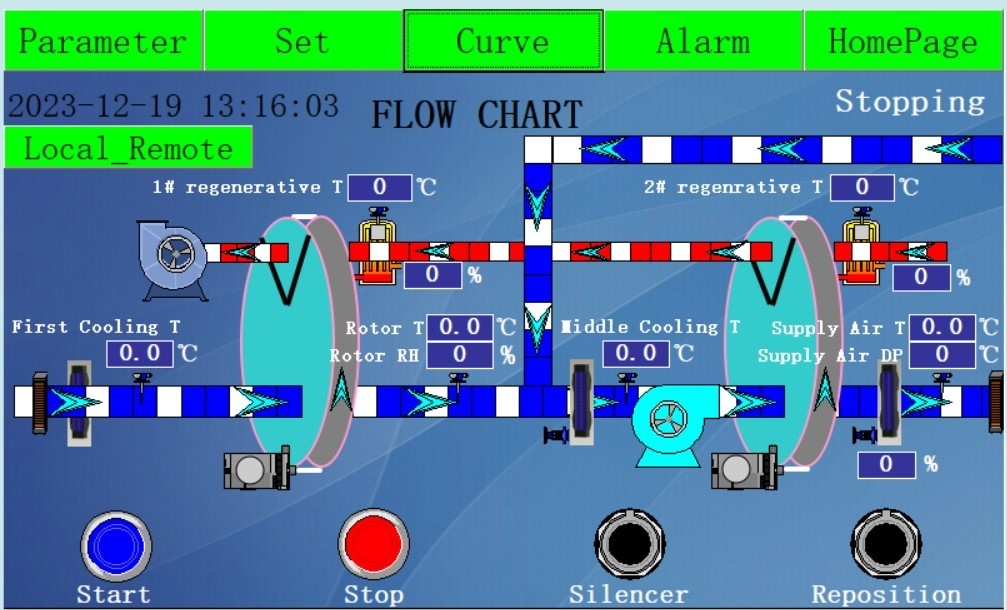

User Friendly Automatic Interface Control System:
We can provide the technical design for dehumidification according to your requirements.
