Pharmaceutical / Food Industry High Efficiency Only Desiccant Dehumidifier

Pharmaceutical / Food Industry High Efficiency Only Desiccant Dehumidifier

  • Desiccant Rotor
    Proflute
  • Installed Power
    7.9kw
  • Product Name
    Dehumidifier
  • Rated Air Flow
    12000m³/h
  • Rated Capacity
    86kg/h
  • Certification
    ISO9001:2015
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FOUDANCE
  • Certification
    CE, ISO
  • Model Number
    ZCS-12000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

Pharmaceutical / Food Industry High Efficiency Only Desiccant Dehumidifier

Pharmaceutical / Food Industry High Efficiency Only Desiccant Dehumidifier



Quick Detail:

Style: Wheel adsorption
Desiccant Rotor: Proflute
Desiccant Material: Silica Gel Wheel
Rated Supply Airflow: 12000m³ /h
Rated Dehumidification Capacity: 86kg/h
Dehumidifier Quality: High
Installed Power: 7.9kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2015
Features: Economical, energy-saving
Usage: Air humidity control


General Description:

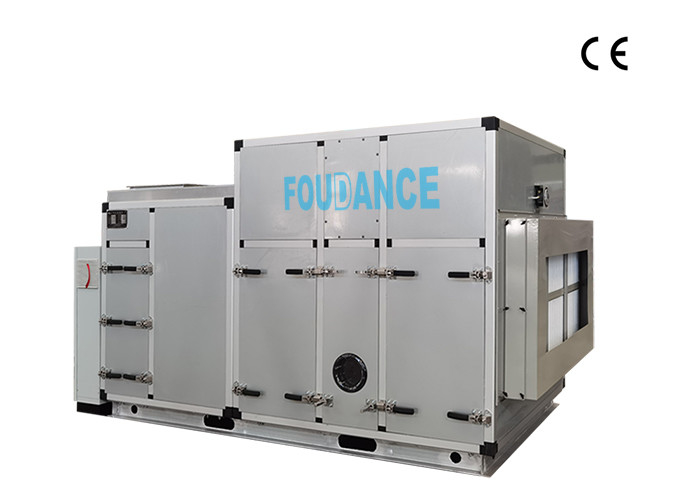

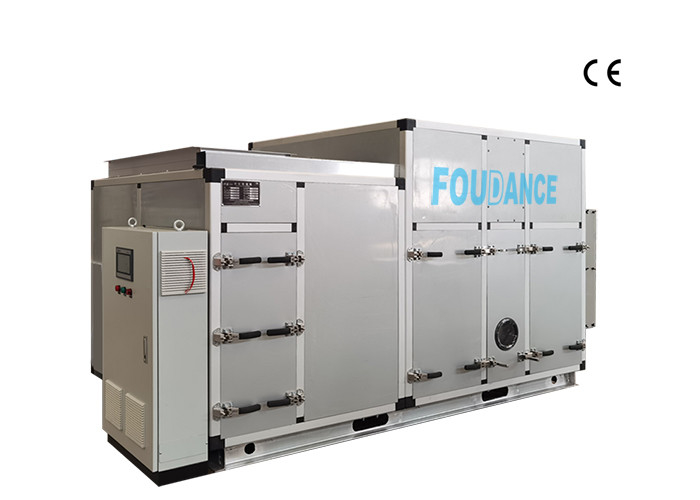

ZCS-12000 Stand-alone Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Competitive Advantage:

  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance


Specifications:


Model ZCS—12000
Supply Airflow(m3/h) 12000
Rated Dehumidifying Capacity 86kg/h
Rotor Process Airflow(m3/h) 12000
Rotor Reactivation Airflow(m3/h) 4000
Reactivation Temperature 120±10℃
Reactivation Heating Steam Consumption (kg/h) 140, 0.4mPa
Reactivation Fan Power(kw) 2.2
Blower Power(kw) 5.5
Driving Motor Power(kw) 0.2
Power Supply 380V/3P/50Hz
Installed Power(kw) 7.9kw
ESP(External Static Pressure) (Pa) ≥600
