Fully Automatic Dry Air Systems Dehumidifier for Air Temp / Humidity Control


Fully Automatic Air Conditioner Dehumidifier for Air Temp& Humidity Control


Quick Detail:

• Style: Cool coil combined with rotor
• Desiccant Rotor: Sweden Proflute
• Desiccant Material: Silica Gel Wheel
• Rated Airflow: 15000m³ /h
• Supply Air Parameters: T=20℃ RH=20%
• Dehumidifying Quality: High
• Installed Power: 88.6kw
• Voltage: 380V, 3 phase, 50Hz or customized
• Certification: ISO9001:2008
• Features: Economical, energy-saving
• Usage: Air temperature and humidity control


General Description:

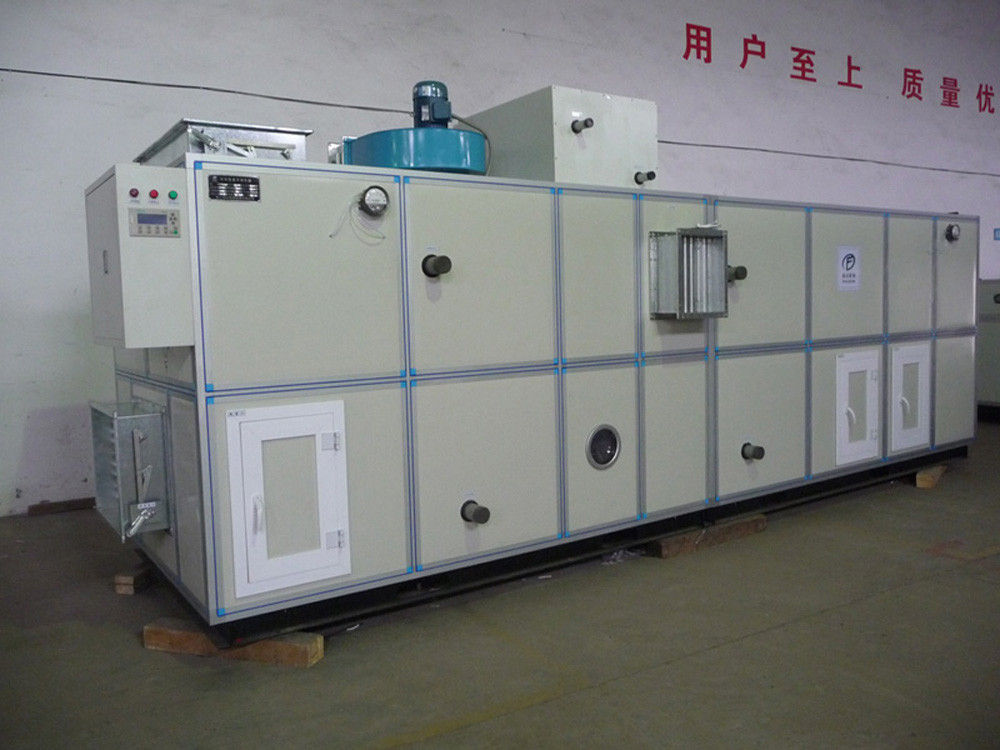

ZCB Series Air Conditioner Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.


Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

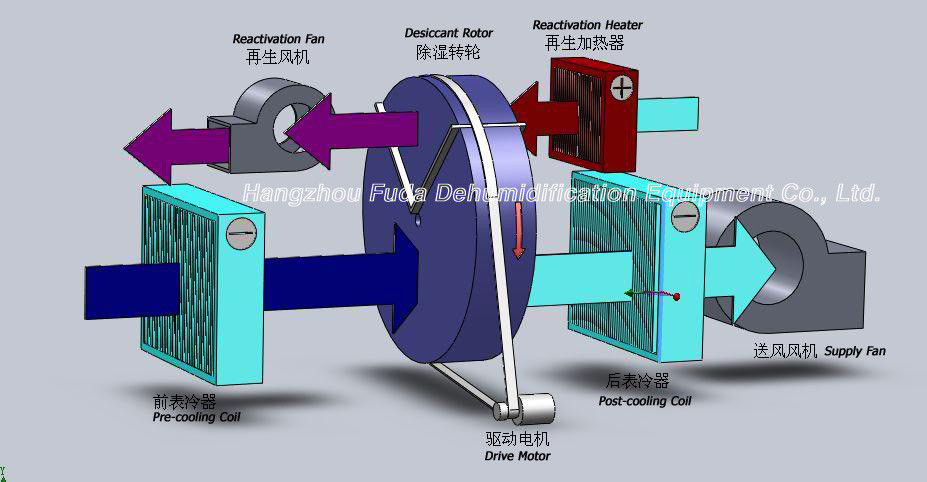

Operating Principles:

Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


Specifications:



Competitive Advantage:

• Sweden Proflute silicon gel wheel
• A totally self contained unit
• PLC automatic control system, human-machine interface
• Aluminum alloy frame, anti-cold bridge
• Body modularization design, foam injected double wall casing
• Stainless steel drain pan and bottom boards
• Process and reactivation air flow sectors are insulated
• Electric or steam heating or convert type can be available
• All operation parameters can be on-line observed, ensuring operation reliability
• High temperature safety thermostat cutout
• Electrical interlocking of fan motors, heaters and rotor driving


We can make unique air temperature and humidity solution according to your requirements.
