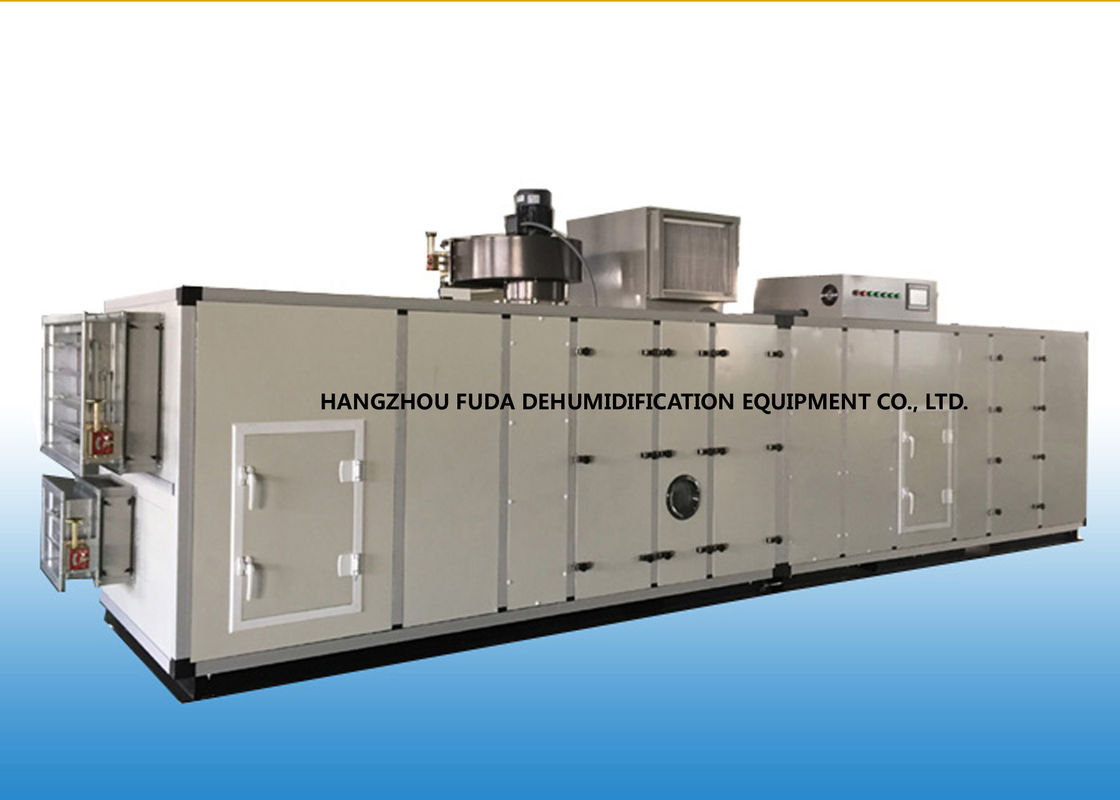

High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil

High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil

  • High Light

    dry air dehumidifier

    ,

    high capacity dehumidifier

    ,

    Industrial Dehumidifier With Cooling Coil

  • Desiccant Rotor
    Sweden Proflute
  • Installed Power
    49.1kw
  • Product Name
    Industrial Desiccant Dehumidifier
  • Rated Air Flow
    6000m³ /h
  • Certification
    CE, ISO9001:2008
  • Supply Air
    T=25℃ RH=20%
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCB-6000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000set/Year

High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil



High Efficiency Silica Gel Wheel Industrial Desiccant Dehumidifier With Cooling Coil




Quick Details:



Style: Refrigeration combined with Wheel

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 6000m³ /h

Supply Air Parameters: T=25℃ RH=20%

Dehumidifier Quality: High

Installed Power: 49.1kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





General Description:



ZCB Series Desiccant Dehumidifier System removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Specifications:



Main Parameters



Model

ZCB—6000

Total Process Airflow

6000m3/h

Fresh Airflow

300 m3/h

Recirculated Airflow

5700 m3/h

Rotor Regeneration Airflow

2000m3/h

Parameters of Output Air

T=25℃ RH=20%

Regeneration Power

42kw

The Power of Regeneration Fan

1.5kw

The Power of Blower

5.5kw

The Power of Driving Motor

0.1kw

Installed Power

49.1kw

Cooling Load

232.6kw

Power Supply

3P/380V/50HZ





Competitive Advantage:



  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving





User Friendly Automatic Interface Control System:



High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil 0





Production Workflow Chart:



Rotary Wheel Industrial Desiccant Dehumidifier for Pharmaceutical Industrial 23.8kg / h





We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
