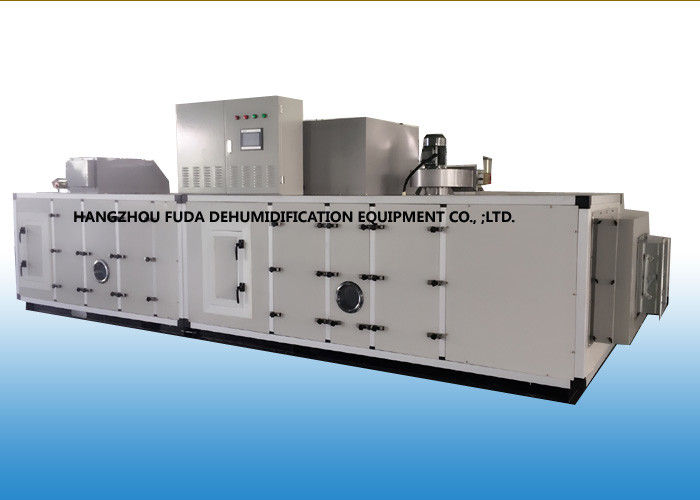

Low Dew Point Industrial Air Dehumidification Units With Sweden Proflute Desiccant Rotor

Low Dew Point Industrial Air Dehumidification Units With Sweden Proflute Desiccant Rotor
Low Dew Point Industrial Air Dehumidification Units With Sweden Proflute Desiccant Rotor Low Dew Point Industrial Air Dehumidification Units With Sweden Proflute Desiccant Rotor

Large Image :  Low Dew Point Industrial Air Dehumidification Units With Sweden Proflute Desiccant Rotor

Product Details:

Place of Origin: Hangzhou, China
Brand Name: FUDA
Certification: CE, ISO
Model Number: ZCH-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden Case
Delivery Time: 45days
Payment Terms: T/T, LC
Supply Ability: 10000sets/Year
Detailed Product Description
Installed Power: 33.95kw Product Name: Industrial Dehumidifier
Rated Air Flow: 2500m³ /h Desiccant Rotor: Sweden Proflute
Supply Air: T=20℃ TL=-40℃ Certification: ISO9001:2008
High Light:

Adsorption Dehumidifier

,

dehumidification units



Lithium Battery Low Dew Point Industrial Air Dehumidifier Super Dry Air





Quick Detail:



Style: Double Wheel Adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel and Molecular Sieve Composite Wheel

Rated Air Flow: 2500m³ /h

Supply Air Parameters: T=20℃ TL=-40℃

Dehumidifier Quality: High

Installed Power: 33.95kw

Voltage: 380V, 3 phase, 50Hz or as customer required

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





Description:



ZCH-2500 Lithium Battery Industry Low Dew Point Dehumidifier is for air deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels. It can supply air with dew point less than -60℃ to glove box for the production of lithium batteries.





Operating Principles:



Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised.  After the medium cooling, the air is further dehumidified by the second desiccant wheel. At last the air is delivered directly to the space or into an existing air handler.



Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Specifications:



Item Parameter
Model ZCH—2500
Process Airflow 3125m3/h(totally fresh air)
Supply Airflow 2500 m3/h
Parameter of Output Air TL≤-40℃
Rotor Regeneration Airflow First Rotor Second Rotor
1040m3/h 625 m3/h
Regeneration Temperature 135℃ 145℃
Regeneration Steam Consumption(0.4mPa) 52Kg/h 32Kg/h
Regeneration Fan Power 1.1kw /
Driving Motor Power 0.1kw 0.1kw
Dehumidifying Fan Power 3.0kw
Blower Power 3.0kw
Compressor Cooling Load 9.5kw
Water Cooling Load 94.3kw
Chilled Water Consumption(T≤7℃) 16.2T/h
Installed Power 7.3kw




Competitive Advantage:



  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • Siemens PLC + HMI automatic control system
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Electric or steam heating or convert type can be available.
  • All operation parameters can be on-line observed, ensuring the operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor drive





We can provide the technical design for dehumidification according to your requirements.
