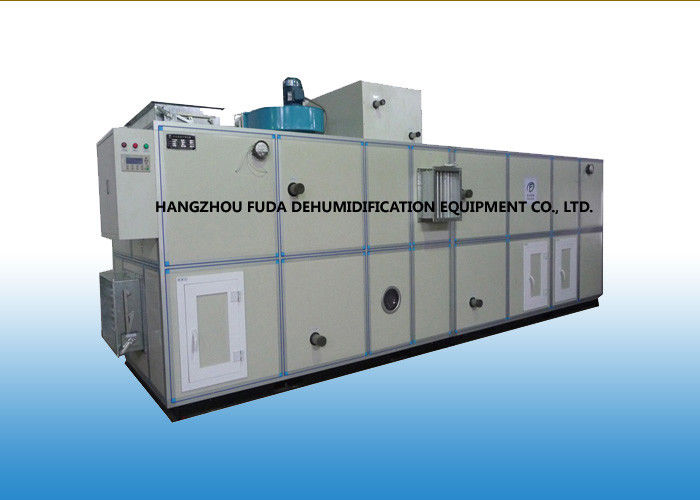

15000m³/h Cooling Combined with Silica Gel Rotor Dehumidifier RH≤20%

15000m³/h Cooling Combined with Silica Gel Rotor Dehumidifier RH≤20%

  • High Light

    air conditioning dehumidifier

    ,

    industrial desiccant air dryer

  • Desiccant Rotor
    Sweden Proflute
  • Installed Power
    88.6kw
  • Product Name
    Rotor Dehumidifier
  • Rated Air Flow
    15000m³/h
  • Desiccant Material
    Silica Gel Wheel
  • Supply Dry Air
    T=20℃ RH<20%
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCB-15000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

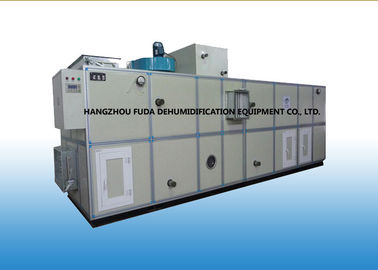

15000m³/h Cooling Combined with Silica Gel Rotor Dehumidifier RH≤20%


15000m³/h Cooling Combined with Silica Gel Rotor Dehumidifier RH≤20%


Quick Detail:

Dehumidify Mode: Cooling combined with Rotor
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Air Flow: 15000m³ /h
Supply Air Parameters: T=20℃ RH=20%
Dehumidifier Quality: High
Installed Power: 88.6kw
Voltage: 380V, 3 phase, 50Hz or customer
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air temperature and humidity control


General Description:

ZCB Series Combined Industrial Desiccant Rotor Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

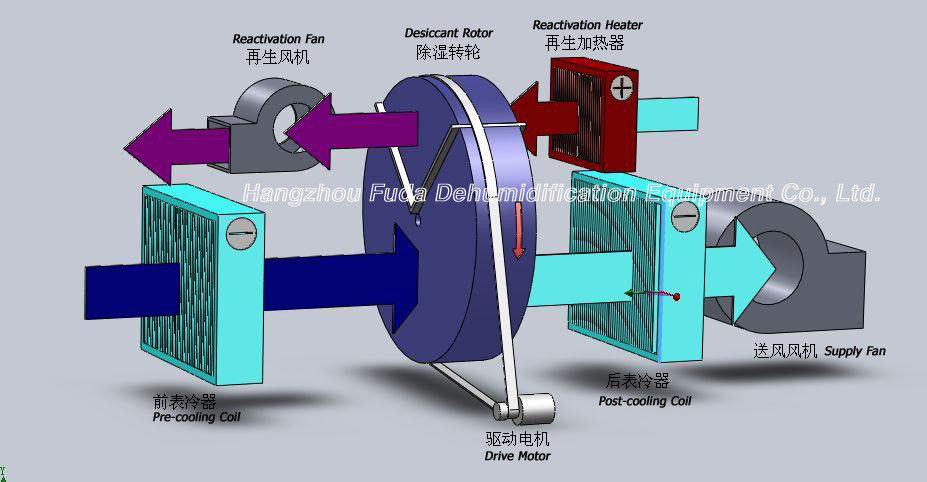

Operating Principles:

Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


Applications:


  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Specifications:


Main Parameters



Model

ZCB—15000

Total Process Airflow

15000m3/h

Fresh Airflow

2000 m3/h

First Recirculated Airflow

6500 m3/h

Second Recirculated Airflow

6500 m3/h

Rotor Regeneration Airflow

2833m3/h

Parameters of Supply Air

T=22℃ RH≤25%

Regeneration Power

Electric Heating

72kw

Steam Consumption

120kg/h

Power of Regeneration Fan

1.5kw

Power of Blower

15kw

Power of Driving Motor

0.1kw

Installed Power

Electric Regeneration

88.6kw

Steam Regeneration

16.6kw

Cooling Load

121.6kw

Chilled Water Consumption

21T/h



Competitive Advantage:

  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving



We can provide the technical design and suitable dehumidifier according to your requirements.
