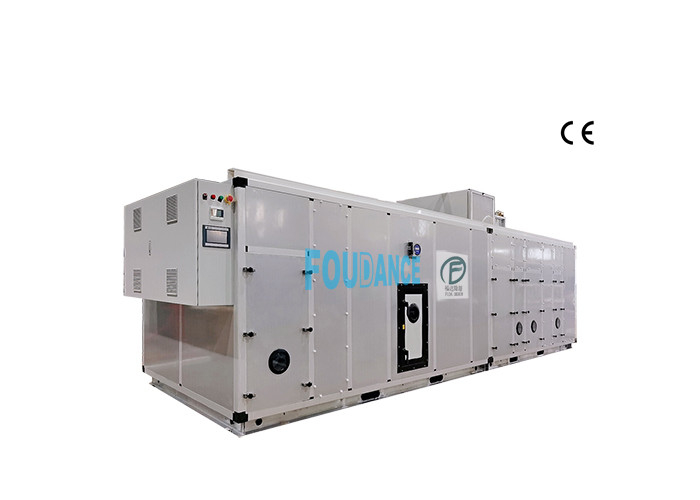

Customized Desiccant Rotor Dehumidifier for Softgel Capsule Drying Room 18000m3/h
Quick Detail:
General Description:
ZCB Series Combined Industrial Desiccant Rotor Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it can control the humidity and temperature of the air independently in one packaged unit.
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
Specifications:
| Model | ZCB-18000 |
| Total Process Airflow (m3/h) | 18000 |
| Required Room Condition | T=18-24℃,RH≤20% |
| Fresh Airflow (m3/h) | 1500 |
| First Recirculated Airflow (m3/h) | 10500 |
| Rotor Process Airflow (m3/h) | 12000 |
| Rotor Reactivation Airflow (m3/h) | 4000 |
| Second Recirculated Airflow (m3/h) | 6000 |
| Supply Air Parameters | T=20℃,RH≤20% |
| Reactivation Steam Consumption (kg/h) | 180 |
| Reactivation Fan Power (kw) | 3.0 |
| Blower Power (kw) | 18.5 |
| Driving Motor Power (kw) | 0.2 |
| Cooling Load (kw) | 176.1 |
| Chilled Water Consumption(T/h) | 30.3 |
| Installed Power (kw) | 21.7 |
| Powder Supply | 380V/3P/50Hz |
- This is a self-contained unit equipped with a PLC automatic control system and human-machine interface.
- It features an aluminum alloy frame with a broken-cold bridge and a body modularization design with foam-injected double wall casing.
- The unit has a stainless-steel drain pan and insulated process and reactivation air flow sectors.
- It can be operated using electric, steam heating, or convert type.
- All operation parameters can be observed online to ensure reliability.
- It is equipped with a high-temperature safety thermostat cutout and electrical interlocking of fan motors, heaters, and rotor driving.
User friendly human machine interface:
We can create custom dehumidification solutions tailored to your needs. If you're interested in our product, get in touch with us today.
Our products are sold all over the world, you can rest assured.
