Double Desiccant Rotor Low Humidity Dehumidifier With Super Dry Air Supplying DPT ≤ -40℃

Double Desiccant Rotor Low Humidity Dehumidifier With Super Dry Air Supplying DPT ≤ -40℃
Double Desiccant Rotor Low Humidity Dehumidifier With Super Dry Air Supplying DPT ≤ -40℃ Double Desiccant Rotor Low Humidity Dehumidifier With Super Dry Air Supplying DPT ≤ -40℃

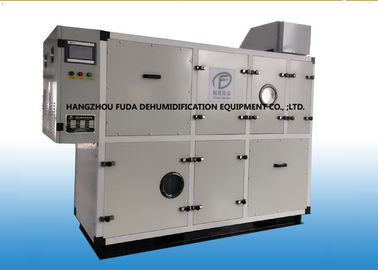

Large Image :  Double Desiccant Rotor Low Humidity Dehumidifier With Super Dry Air Supplying DPT ≤ -40℃

Product Details:

Place of Origin: Hangzhou, China
Brand Name: FUDA
Certification: CE, ISO
Model Number: ZCH-500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden Case
Delivery Time: 45days
Payment Terms: T/T, LC
Supply Ability: 10000sets/Year
Detailed Product Description
Installed Power: 20.27kw Product Name: Industrial Dehumidifier
Rated Air Flow: 500m³ /h Desiccant Rotor: Sweden Proflute
Supply Air: DPT≤-40℃ Certification: ISO9001:2008
High Light:

Adsorption Dehumidifier

,

dehumidification units



Double Desiccant Rotor Dehumidifiers with Super Dry Air Supplying DPT≤-40℃





Quick Detail:



Style: Double Wheel Adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel and Molecular Sieve Composite Wheel

Rated Air Flow: 500m³ /h

Supply Air Parameters: DPT≤-40℃

Dehumidifier Quality: High

Installed Power: 33.95kw

Voltage: 380V, 3 phase, 50Hz or as customer required

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





Description:



ZCH-500 Low Dew Point Dehumidifier is for air deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels. It can supply air with dew point less than -60℃ to glove box for the production of lithium batteries.





Operating Principles:



Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised.  After the medium cooling, the air is further dehumidified by the second desiccant wheel. At last the air is delivered directly to the space or into an existing air handler.



Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Specifications:



Model ZCH-500
Total Process Airflow (m3/h) 625
Required Room Condition DPT≤-40℃
Fresh Airflow (m3/h) 625
First Rotor Process Airflow (m3/h) 625
Second Rotor Process Airflow (m3/h) 500
Rotor Reactivation Airflow (m3/h) (First Rotor) 210
Rotor Reactivation Airflow (m3/h) (Second Rotor) 125
Supply Airflow (m3/h) 500
Reactivation Heating Power(First Rotor) 2
Reactivation Heating Power(Second Rotor) 4
Cooling Load (kw) 26.4
Outdoor Units Power(kw) 13.38
Reactivation Fan Power (kw) 0.09
Blower Power (kw) 0.75
Driving Motor Power (kw) 0.025﹢0.025
EPS (Pa) ≥500
Powder Supply 3P 380V 50HZ
Installed Power (kw) 20.27




Competitive Advantage:



  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • Siemens PLC + HMI automatic control system
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Electric or steam heating or convert type can be available.
  • All operation parameters can be on-line observed, ensuring the operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor drive





We can provide the technical design for dehumidification according to your requirements.
