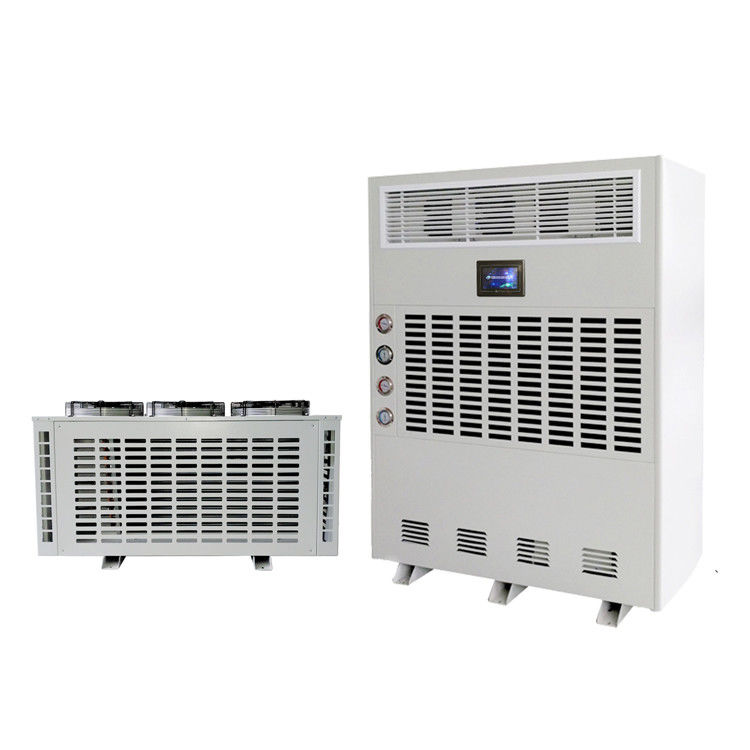

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h

  • High Light

    industrial dehumidifier with air conditioning

    ,

    refrigeration industrial dehumidifier

    ,

    20kg/h industrial dehumidifier

  • Model
    DJFT-4881E
  • Dehumidifying Capacity
    20KG/H
  • Rated Power
    13.2kW
  • Work Temperature
    5-38℃
  • Application Scope
    280-350m2
  • Indoor Unit Size
    1310*700*1800mm
  • Cooling Load
    18.7kw
  • Outdoor Unit Size
    1450*745*810mm
  • Electric Heating Power
    7.2kw
  • Process Airflow
    5600CBM/H
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FOUDANCE
  • Certification
    CE, ISO
  • Model Number
    DJFT-4881E
  • Minimum Order Quantity
    10sets
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Supply Ability
    10000sets/Year

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h


Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 0
Main Parameters(Test condition: T=27℃,RH=70%)


ModelDJFT-3881EDJFT-4881E
Nominal Dehumidifying Capacity15kg/h20kg/h
Power Supply380V-50Hz
Rated Input Current19A26.3A
Rated Input Power7.2KW10KW
Work Temperature5-38℃
Circulating Airflow4000m3/h5600m3/h
Drainage Modeexternal soft tube connection, drain continuously
Overall Dimension

Indoor Unit: 1480*900*2030(mm)

Outdoor Unit: 1600*970*1030(mm)

Gross Weight250kg300kg
Net Weight220kg270kg
Applicable Scope200-280m2280-350m2
CompressorNamed compressor
Automatic DefrostStart when environment temperature below 18℃
Mobile Modefixed
Wind DirectionFront input top output
Designtouch screen, humidity and time automatic control
PackagingWooden Case





Features



Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 1



Temperature conditioning industrial dehumidifier is a auto adjusting device according to temperature and humidity of environment, temperature control accuracy to ± 1℃, humidity control accuracy to ± 3~5% RH, it's a perfect machine for the area like electric, labtoratory, scientific research, medicine industry, workshop and warehouse etc.

  • Humanization design: It's high-efficiency and energy-saving running by multistage capacity adjustment according to real load capacity.
  • Eco-friendly: Use updating green refrigerant R407c/R134a, it can import freshing air and recycle energy to keep air freshing and natural.
  • Intelligent control: automatic control sysyem integrated by world famous brand eletric components and parts, it can be programmed controlled according to cutomer's requirement. Various of control way with easy operation by touch screen, and has configurable communication interfaces for long-range control.
  • Silence running: the unit use double system of "Panasonic" high efficiency compressor and low noise efficient fan on outdoor unit, and optimization designed with extensive high heat exchange rate parts by sound deadening processing.
  • Easily maintaining: the unique design of unit body to separate the refrigrating system and air system, it can be maintained and repaired when the unit running, low malfunction rate.
  • Various type: ODM & OEM welcomed.





Specification



Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 2



Fuda dehumidifiers are effective solutions to environmental control problems. The ranges of units are high capacity dehumidifiers, made to operate at high efficiencies by removing moisture from the air through the refrigeration process. Than fan draws the moist air through the cold evaporator coil, which cools the air below its dew point. Moisture forms on the evaporator coil and is collected in condensate tray before draining away through the condensate tube. The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by compressor. The air is, therefore, discharged from the dehumidifiers at a slightly higher temperature with a lower absolute humidity than that which entered. Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area.



Application

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 3


Industrial temperature conditioning dehumidifier is widely used in the area which need both humidity and temperature controlling. Theoretically, the machine can control the room RH from 45%~60%, and temperature from 5℃~35℃. Don't need to install additional air conditioner equipment. All settled by one machine.

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 4

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 5

Process Flow

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 6

User Friendly Control System

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 7


Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 8
Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 9

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 10

Fully Automatic Temperature Regulation Type Industrial Dehumidifier 20kg/h 11

Contact us now, we will provide thorough solutions for your air temperature and humidity.
