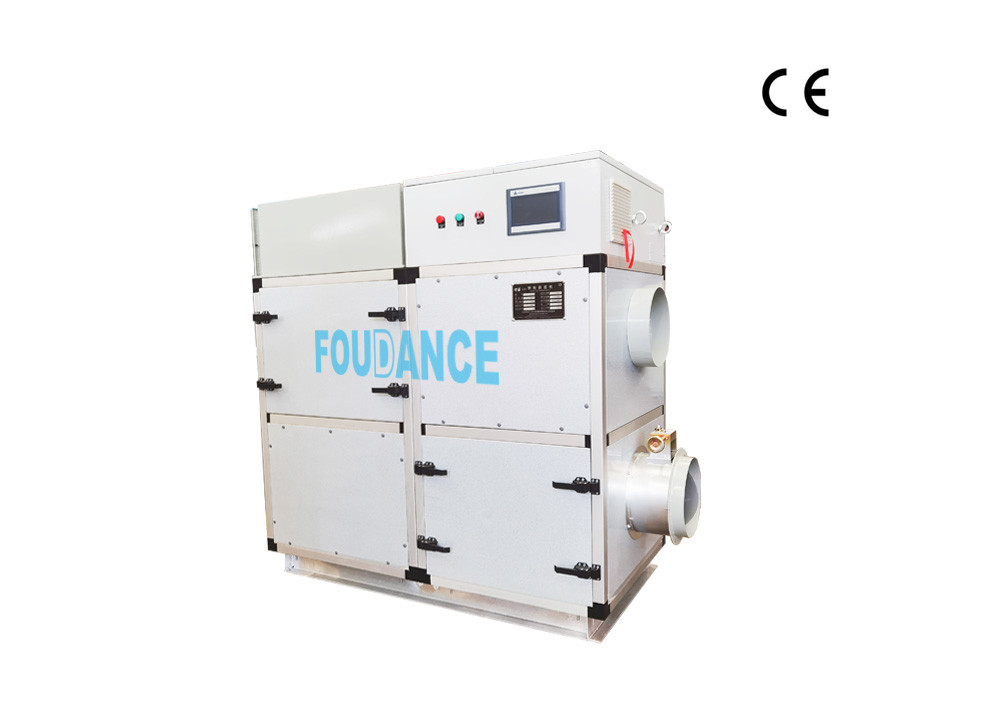

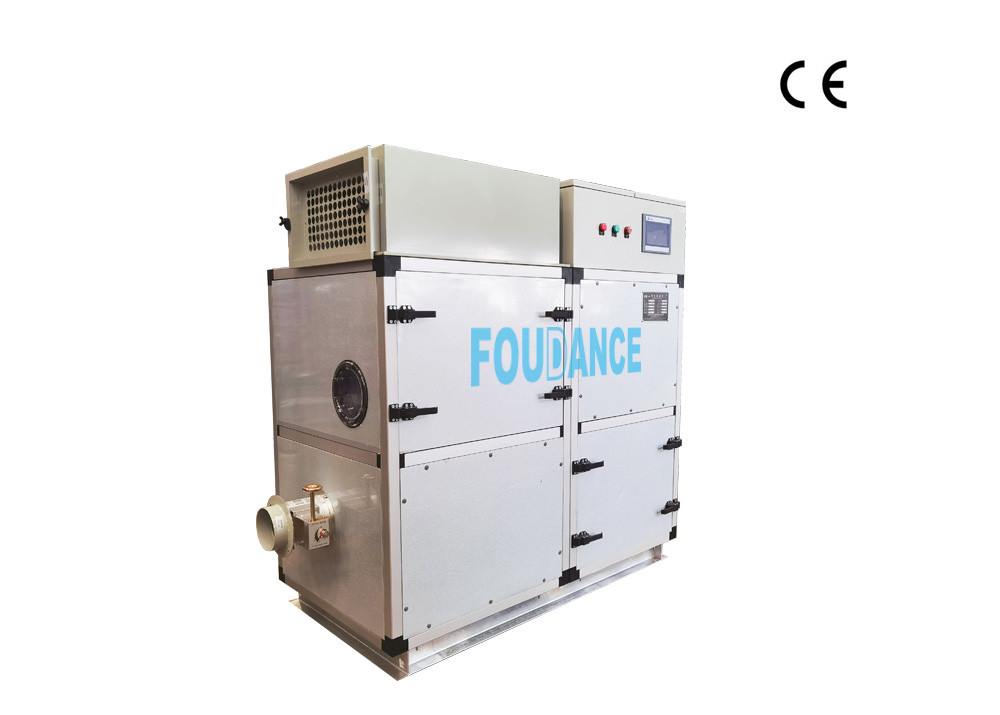

1000m3/h Silica Gel Rotary Wheel Industrial Desiccant Dehumidifier

1000m3/h Silica Gel Rotary Wheel Industrial Desiccant Dehumidifier

Quick Detail:


Style: Wheel adsorption

Desiccant Rotor: Import

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 1000m³ /h

Rated Capacity: 7.2kg/h

Installed Power: 11.96kw

Voltage: 380V/3P/50Hz or customized

Certification: CE, ISO9001:2015

Features: Economical, energy-saving
Usage: Air humidity control


Specification

General Description:



The Industrial Desiccant Dehumidifier removes moisture from the air by using a desiccant material that easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperatures and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity–laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda, with over 40 years of experience in dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.

Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Competitive Advantage:


• Good dehumidifying capacity
• Compact structure,
• Stability and reliability,
• Easy operation and maintenance

User Friendly Automatic Interface Control System:

Production Workflow Chart:

We can create custom dehumidification solutions tailored to your needs. If you're interested in our product, get in touch with us today.
