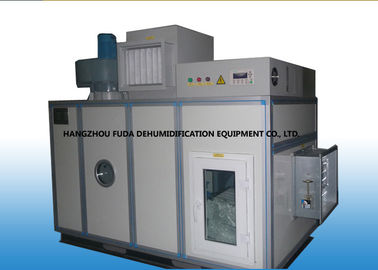

Wheel Adsorption Stand-Alone Industrial Desiccant Rotor Dehumidifier 4500m³/H

Wheel Adsorption Stand-Alone Industrial Desiccant Rotor Dehumidifier 4500m³/H

  • High Light

    high capacity dehumidifier

    ,

    Energy Saving Dehumidifier

    ,

    Stand Alone Industrial Desiccant Dehumidifier

  • Desiccant Rotor
    Sweden Proflute
  • Installed Power
    42.7kw
  • Product Name
    Industrial Desiccant Dehumidifier
  • Process Airflow
    4500m³/h
  • Rated Capacity
    35kg/h
  • Certification
    ISO9001:2008
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO9001
  • Model Number
    ZCS-4500
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000set/Year

Wheel Adsorption Stand-Alone Industrial Desiccant Rotor Dehumidifier 4500m³/H



Wheel Adsorption Stand-alone Industrial Desiccant Rotor Dehumidifier 4500m³/h



Quick Detail:

Style: wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Airflow: 4500m³ /h
Rated Dehumidification Capacity: 35kg/h
Dehumidifying Quality: High
Installed Power: 42.7kw
Power Supply: 380V/3P/50Hz or customized
Certification: ISO9001:2008
Features: automatic, energy-saving
Usage: air dehumidifying only


General Description:

ZCS-4500 Industrial Desiccant Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Competitive Advantage:



  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance



Specifications:


Main Parameters



Model

ZCS-4500

Process Airflow

4500 m3/h

Regeneration Airflow

1500 m3/h

Rated Dehumidification Capacity

35 kg/h

Regeneration Power

36 kw

Power of Process Fan

5.5 kw

Power of Regeneration Fan

1.1 kw

Power of Driving Motor

0.1 kw

Installed Power

42.7 kw

Dimension

2440×1162×1905 mm

Weight

600 kgs





















User Friendly Automatic Interface Control System:

Wheel Adsorption Stand-Alone Industrial Desiccant Rotor Dehumidifier 4500m³/H 0

Wheel Adsorption Stand-Alone Industrial Desiccant Rotor Dehumidifier 4500m³/H 1





Production Workflow Chart:



Rotary Wheel Industrial Desiccant Dehumidifier for Pharmaceutical Industrial 23.8kg / h





We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
