Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point < -45 C

Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point &lt; -45 C
Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point &lt; -45 C Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point &lt; -45 C Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point &lt; -45 C

Large Image :  Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point < -45 C

Product Details:
Place of Origin: Hangzhou, China
Brand Name: FUDA
Certification: CE, ISO
Model Number: ZCH-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Wooden Case
Delivery Time: 45days
Payment Terms: T/T, LC
Supply Ability: 10000sets/Year

Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point < -45 C

Description
Installed Power: 33.95kw Product Name: Industrial Dehumidifier
Rated Air Flow: 2200m³ /h Desiccant Rotor: Sweden Proflute
Certification: ISO9001:2008 Supply Air Parameters: T=20℃ TL=-65℃
High Light:

dehumidification units

,

Silica Gel Dehumidifier

Rotary Wheel Low Humidity Dehumidifier Super Dry Air Dew Point < -45 C





Quick Detail:



Style: Double Wheel Adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel&Molecular Sieve

Rated Air Flow: 2200m³ /h

Supply Air Parameters: T=20℃ TL=-65℃

Dehumidifier Quality: High

Installed Power: 33.95kw

Voltage: 380V, 3 phase, 50Hz or as customer required

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





Description:



ZCH-2200 Lithium Battery Industry Dehumidifier is for air deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels. It can supply air with dew point less than -60℃ to glove box for the production of lithium batteries.





Operating Principles:



Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised.  After the medium cooling, the air is further dehumidified by the second desiccant wheel. At last the air is delivered directly to the space or into an existing air handler.



Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Specifications:



Main Parameters



Model

ZCH-2200

Total Process Airflow(Fresh Air)

2750 m³/h

Supply Airflow

2200 m³/h

Parameters of Output Air

T=22℃, TL≤-50℃

Regeneration Airflow

First Wheel

Second Wheel

916 m³/h

550 m³/h

Regeneration Temperature

125-130℃

135-145℃

Regeneration Power

18kw

12kw

The Power of Driving Motor

0.1kw

0.1kw

The Power of Regeneration Fan

0.75kw

The Power of Dehumidification Fan

1.5kw

The Power of Process Blower

1.5kw

Cooling Load

87.7kw

Installed Power

33.95kw





Competitive Advantage:



  • Sweden Proflute desiccant wheel
  • A totally self contained unit

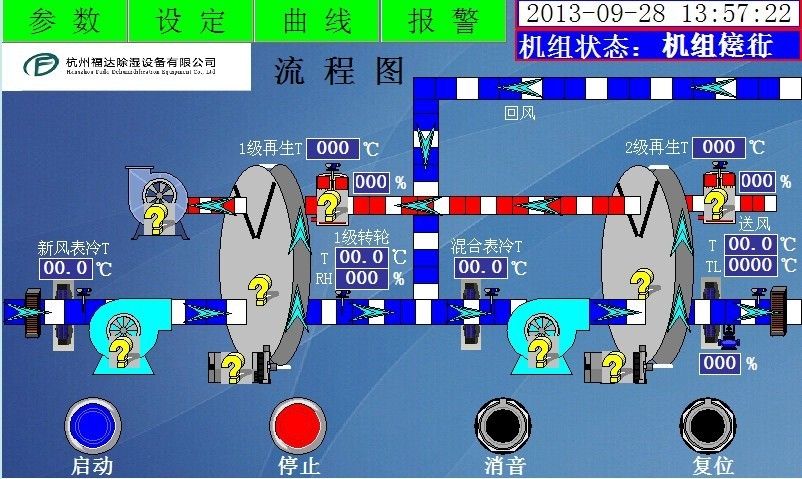

  • Siemens PLC + HMI automatic control system
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Electric or steam heating or convert type can be available.
  • All operation parameters can be on-line observed, ensuring the operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor drive





We can provide the technical design for dehumidification according to your requirements.
