7000m3/h Energy Saving Desiccant Air Dehumidifier , Steam Reactivation
Quick Details:
Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Process Airflow: 7000m³ /h
Rated Dehumidifying Capacity: 50kg/h
Dehumidification Efficiency: High
Installed Power: 9.1kw
Voltage: 380V/3 phase/50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air humidity control
Applications:
General Description:

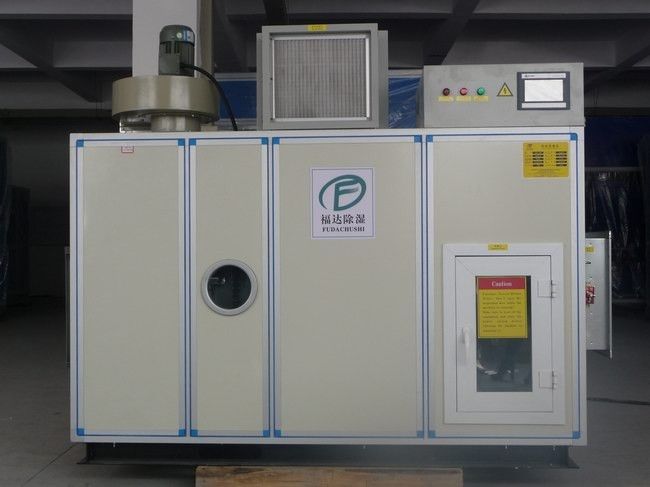

ZCS-7000 Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.
In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.
This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.
Leading by high-tech, Hangzhou Fuda, with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.
Specifications:
Main Parameters |
|
Model | ZCS-7000 |
Process Airflow | 7000 m3/h |
Regeneration Airflow | 2330 m3/h |
Rated Dehumidification Capacity | 50 kg/h |
Reactivation Steam Consumption | 100 kg/h |
Process Fan Power | 7.5 kw |
Reactivation Fan Power | 1.5 kw |
Driving Motor Power | 0.1 kw |
Installed Power | 9.1 kw |
Dimension | 2475×1362×1950mm |
Weight | 850 kgs |
