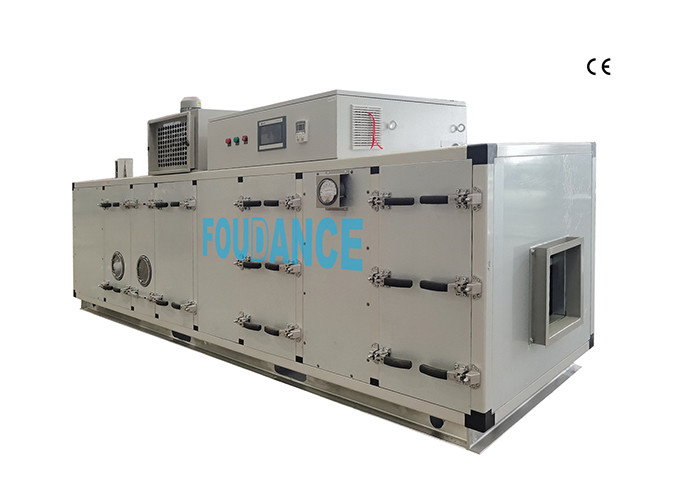

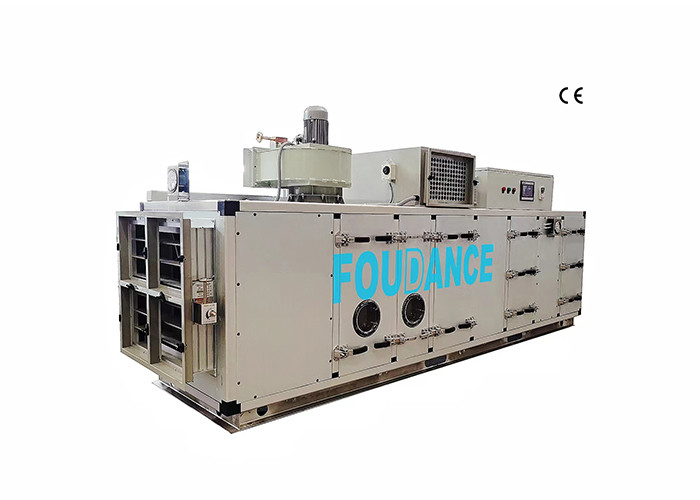

2500m3/h Totally Fresh Air Desiccant Rotor Dehumidifier RH≤20%
Quick Details:
Dehumidifying Mode: Cooling combined with Rotor
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Process Airflow: 2500m³ /h
Supply Air Parameters: T=15℃, RH=20%
Dehumidification Efficiency: High
Installed Power: 21kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2015
Features: Economical, energy-saving
Usage: Air temperature and humidity control
General Description:
ZCB Series Desiccant Rotor Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
Applications:
Specifications:
| Model | ZCB—2500 |
| Process Airflow(m3/h) | 2500 |
| Requirements | T≤15℃, RH≤20% |
| Fresh Airflow(m3/h) | 2500 |
| Reflow Airflow(m3/h) | 0 |
| Rotor Process Airflow(m3/h) | 2500 |
| Rotor Reactivation Airflow(m3/h) | 830 |
| Parameter of Supply Air | T=15℃, RH≤20% |
| Reactivation Temperature | 120±10℃ |
| Reactivation Heating Power (kw) | 18 |
| Reactivation Fan Power(kw) | 0.75 |
| Blower Power(kw) | 2.2 |
| Driving Motor Power(kw) | 0.1 |
| Cooling Load(kw) | 71 |
| Chilled Water Consumption(T/h) | 12.2 |
| Power Supply | 380V/3P/50Hz |
| Installed Power(kw) | 21.05 |
| ESP(External Static Pressure) (Pa) | ≥500 |
