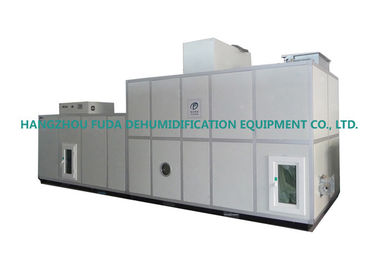

Air Handling Rotary Wheel Dehumidifier Industrial for Lithium Battery Production
Style: Double Wheel Adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Rotor Material: Silica Gel&Molecular Sieve
Rated Air Flow: 8500m³ /h
Supply Air Parameters: T=20℃ TL=-65℃
Dehumidifier Quality: High
Installed Power: 33.95kw
Voltage: 380V, 3 phase, 50Hz or as customer required
Features: Economical, energy-saving
Usage: Air temperature and humidity control
ZCH-8500 Lithium Battery Industry Dehumidifier is for air deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels. It can supply air with dew point less than -60℃ to glove box for the production of lithium batteries.
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised. After the medium cooling, the air is further dehumidified by the second desiccant wheel. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
|Required Temp.& Humidity||T=23±2℃, TL≤－45℃|
|Total Process Airflow||10625 m³/h|
|Fresh Airflow||2815 m³/h|
|Recirculated Airflow||7810 m³/h|
|Unit Supply Airflow||8500 m³/h|
|Parameters of Output Air||T=22℃, TL≤－63℃|
|Regeneration Airflow||First Wheel||Second Wheel|
|938 m³/h||2125 m³/h|
|The Power of Regeneration Fan||0.75kw||/|
|The Power of Dehumidification Blower||1.5kw||7.5kw|
|The Power of Driving Motor||0.1kw||0.2kw|
We can provide the technical design for dehumidification according to your requirements.
