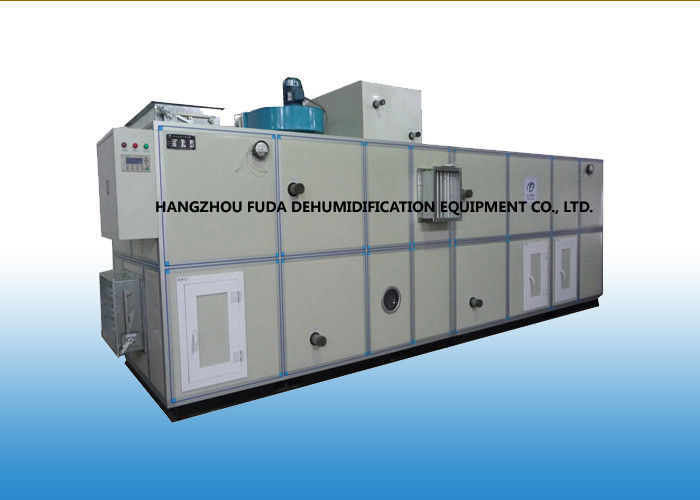

Rotary Wheel High Temperature Dehumidifier Silica Gel for Pharmaceutical

Rotary Wheel High Temperature Dehumidifier Silica Gel for Pharmaceutical

  • High Light

    Industrial Desiccant Dehumidifiers

    ,

    silica gel dehumidifier

  • Certificate
    ISO9001
  • Installed Power
    88.6kw
  • Product Name
    High Temperature Dehumidifier
  • Rated Air Flow
    15000m³/h
  • Desiccant Rotor
    Sweden Proflute
  • Supply Dry Air
    T=20℃ RH=20%
  • Place of Origin
    Hangzhou, China
  • Brand Name
    FUDA
  • Certification
    CE, ISO
  • Model Number
    ZCB-15000
  • Minimum Order Quantity
    1set
  • Packaging Details
    Wooden Case
  • Delivery Time
    45days
  • Payment Terms
    T/T, LC
  • Supply Ability
    10000sets/Year

Rotary Wheel High Temperature Dehumidifier Silica Gel for Pharmaceutical

Rotary Wheel High Temperature Dehumidifier Silica Gel for Pharmaceutical





Quick Detail:



Style: Refrigeration combined with Wheel

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 15000m³ /h

Supply Air Parameters: T=20℃ RH=20%

Dehumidifier Quality: High

Installed Power: 88.6kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





General Description:



ZCB Series Desiccant Air Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.





Operating Principles:



Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.



Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.



Rotary Wheel High Temperature Dehumidifier Silica Gel for Pharmaceutical 0





Applications:



  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





Specifications:



Main Parameters



Model

ZCB—15000

Total Process Airflow

15000m3/h

Fresh Airflow

2000 m3/h

First Recirculated Airflow

6500 m3/h

Second Recirculated Airflow

6500 m3/h

Rotor Regeneration Airflow

2833m3/h

Parameters of Output Air

T=22℃ RH≤25%

Regeneration Power

Electric Heating

72kw

Steam Consumption

120kg/h

The Power of Regeneration Fan

1.5kw

The Power of Blower

15kw

The Power of Driving Motor

0.1kw

Installed Power

Electric Regeneration

88.6kw

Steam Regeneration

16.6kw

Cooling Load

121.6kw

Chilled Water Consumption

21T/h







Competitive Advantage:



  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving





We can provide suitable DEHUMIDIFYING SOLUTION according to your requirements.
